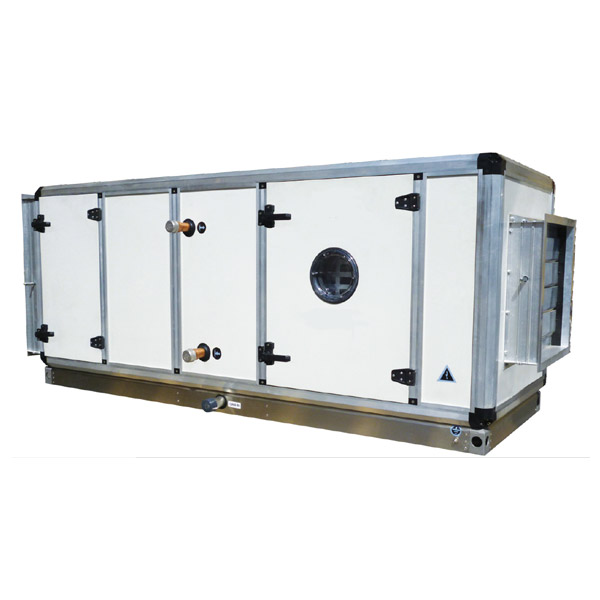

Air Handling Units

Units can be configured based on the Type of Air to be processed:

• Re-Circulating Air Handling Unit with Return Air Intake (100% Return Air)
• Fresh Air / Make Up Air Handling Unit with Fresh Air intake (100% Fresh Air)
• Mixed Air Air Handling Unit with Fresh Air ad Return Air Intake (Return - Fresh Air Mixture)

Units can be configured based on Installation type:

• Floor Mounted Type
• Ceiling Suspended Type

Cooling Coil Can be Selected for different applications:

• Chilled Water Application
• DX Application

Units can be provided with a whole range of Components in many different Configurations:

• Mixing Box
• Pre Filter
• Bag Filter
• HEPA Filter
• Chilled Water Cooling Coil
• DX Cooling Coil
• Droplet Eliminator
• Horse Shoe Heat Pipe
• Humidifier
• Electric Heater
• UV Lamp
• Odour Neutraliser
• Axial / Centrifugal / Plug Fan
• Damper

Certifications:

• Eurovent Certified Units
• AHRI Certified Coils
• AMCA Certified Fans
• ISO 9001:2008 Certified Manufacturing Facility

Features:

• Air Handling Units manufactured in modular sections.
• Units are with thermal break system applied for both panels and frames.
• 25mm, 50mm, 60mm thick Panel with Polyurethane or Fiberglass insulation.
• 0.8mm - 1.5mm thick Galvanized Steel or Stainless Steel sheet skin
• Different sectional arrangements and fan discharge positions are possible depending on the site constraints and requirements.
• Cooling Coil with Cu tubes and Al fins
• Drain pan available in GI, SS 304 & SS 316 Constructions
• Plastic Coated External Skin
• Capacity range: 600 CFM to 80000 CFM
• Refrigerants R22, R410a, R407c, R134a, R404a
• Air Handling Units are applicable for indoor and outdoor installation
