Pre-insulated Duct & Fittings
ENERGIA DUCT Phenolic Duct System is a cutting edge HVAC Ductwork Technology with reduced air-leakage, reduced energy usage, reduced weight, reduced construction time, reduced cost, reduced CO2 emission and with improved Thermal & Fire Performance. It comprises exceptional quality ENERGIA DUCT Phenolic panel, couplings and all kind of accessories required for the construction of ductwork. Due to simple fabrication and installation process, pre-insulated ductwork systems have been recognize by the HVAC industry as a significant innovative alternative to the classical sheet metal (GI) ductwork.
The ductwork fabricated from ENERGIA DUCT Phenolic Duct System is used for operation as supply, return, fresh and exhaust air duct for HVAC systems in the residential, commercial & inductrial sectors. ENERGIA DUCT is the best choice for a large range of applications where thermal & fire performance, moisture resistance and in certain cases structural strength are key performance criteria. It can be used in critical projects like Food, Beaverage, Pharmaceutical, Hospital & Data Centers
- ENERGIA DUCT Phenolic Panel comprise a closed cell thermoset phenolic insulation core with autohesively bonded protective and durable facing on both sides.
- It is non-porous, non-fibrous, odourless.
- It resists mold, fungal & bacterial growth.
It is recommended that ductwork fabricated from The ENERGIA DUCT Phenolic Duct System is used in systems operating within the following limits:
- Mean Air Velocity (Max.) - 25 m/s
- Design Pressure (Max.) - Positive: 1 KPa; Negative: 0.750 KPa
- Continuos Operating Temperature Limits -20°C to +80°C
Technical Information
| # | First | Last | Handle |
|---|---|---|---|
| PROPERTY | UNIT | VALUE | STANDARD |
| Thickness | mm | 20, 25, 30, 40, 50 | - |
| Length | mm | 3900, 2900 | - |
| Width | mm | 1200 | - |
| Facing | - | Embossed Aluminium Foil, | - |
| Embossed Aluminium Foil with Fiber Glass, | |||
| Aluminium Sheet, | |||
| Color Steel Sheet, | |||
| Galvanized Sheet | |||
| Facing Thickness | micron | 60, 80, 200 | - |
| Nominal Density Range | Kg/m³ | 55 to 75 | ASTM C303-10 (16el) |
| Thermal Conductivity (k-value) | W/m*K | 0.030 | ASTM C518:2015 |
| Water Absorption rate | % | 1.9 | - |
| Water Vapour Permeance | Perms | 0.00 | ASTM E96/96M -2016 |
| Operating Temperature Limits | °C | -20 to +80 | - |
| Compressive strength | kpa | 300 - 350 | - |
| Surface Burning Charecteristics | - | Class 1 | UL 181 |
| Flame Spread Index (FSI) | - | <25 | ASTM E84 / UL 723 |
| Smoke Development Index (SDI) | - | <50 | ASTM E84 / UL 723 |
| Combustion Performance | - | Class 0 | BS476 Part 6 and 7 |
| CFC / HCFC | - | CFC / HCFC Free | - |
- UL 181 approval is for 20mm & 30mm thick Phenolic Foam Panels with Aluminium and Fiberglass facing on both sides.
- UL Listed ductwork fabricated from ENERGIA DUCT Phenolic System comly with the requirement of "UAE Fire & Life Safety Code of Practice" and have the certificate of compliance issued by UAE Ministry of Interior Civil Defense G.H.Q.
- ENERGIA DUCT Phenolic foam insulation panels are tested and approved by Dubai Central Laboratory as per 2018 "UAE Fire & Life Safety Code of Practice."
- ENERGIA DUCT Phenolic foam insulation panels are tested and approved by Dubai Central Laboratory as per 2017 Al Saf'at - Dubai Green Building Evaluation system.
- ENERGIA DUCT Phenolic Panel does not contain asbestos as required by The Pearl Rating System for ESTIDAMA.
Pre-insulated Duct Components

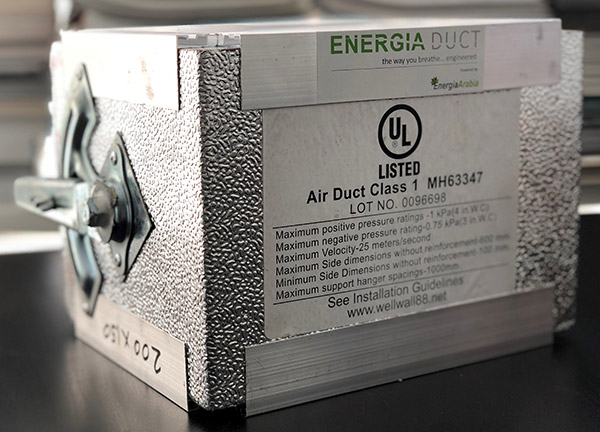

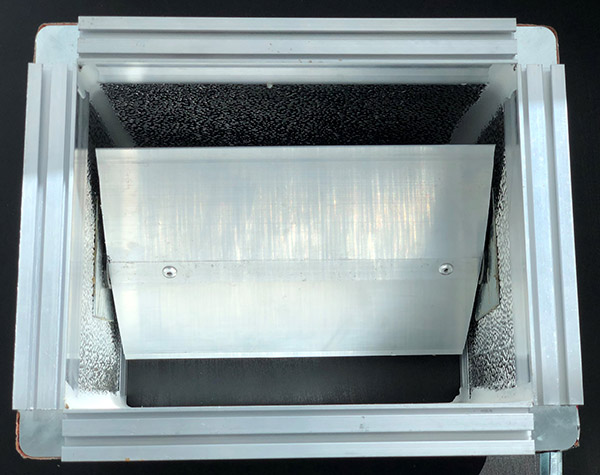

ENERGIA DUCT VCD is Designed for the purpose of controlling air flow and pressure in heating, ventilating and air conditioning systems in open / limited access areas and light weight applications.
construction
- Frame: 20mm thick Phenolic Foam sheet with Aluminium foil facing on both sides
- Frame Size: 160 to 200mm depth with flanges for side‐fixing
- Blades: 1mm Extruded Aluminium aerofoil profiles.
- Drive Shaft: 12mm Galvanized steel square rod
- Bearing: Nylong bushings.
- Handle: Galvanized Steel locking quadrant.
Description
- The edges are joined using special glue and silicon.
- Baldes are mounted on nylon bushes operated by an exterior linkage.
- Hand locking quadrant is provided with proper indications for damper open/close
- Energia Duct NRD is constructed from 20mm thick ENERGIA DUCT Phenolic Pre-Insulated Panel with Aluminium foil facing on both sides.
- The edges are joined using special glue and sealed with silicon sealant for air tight functioning which adds to maintain rigidity.
- Dampers are provided with Polymer / aluminium Flanges for connection with ductwork sections.
- ENERGIA DUCT NRD consist of high quality Airfoil blade made of 1.1 mm thick aluminum extruded profile.
- Brass bushes 8mm with drive.
- Spindles are made of 8mm Galvanized steel pipe.
- Standard 20mm
- Standard 170mm
DESCRIPTION
ENERGIA DUCT Access doors are designed for use in Pre-Insulated ductwork to provide convenient, economical access to the duct components. Access doors are provided with gasket seal between the door and frame to ensure air tight operation.
STANDARD CONSTRUCTION
Frame
20mm thick of Pre-Insulated Energia Phenolic Panel material with 2-sides Aluminum foil facing and provided with aluminum Chair profile
Door
20mm thick of Pre-Insulated Energia Phenolic Panel material with 2-sides Aluminum foil facing and provided with aluminum U profile .
Latches
Die cast zinc plated steel progressive cam locks and fastening clamps are provided and positioned at strategic locations for optimum closure and low leakage.
Gasket
Neoprene gasket seal of thickness 3 mm provided for ensuring low leakage performance. (Optional)
Hinges
Continuous hinges on one side are available as an optional construction.
Size
Size can be customized as per the request .
Handle
A safety handle for safety opening and closure (Optional)
Duct Accessories
All the accessories required for Fabrication of ducts at factory and Installation of ducts at site.
- Aluminium Invisible Flange 20mm
- PVC Invisible Flange 20mm
- PVC H-Bayonet 20mm
- PVC Corner 1 Way
- GI Corner 20mm
- Aluminium Chair Flange 20mm
- Aluminium F Flange 20mm
- Aluminium U Flange 20mm
- Duct Adhesive
- Acrylic Sealant
- Profile Glue
- Aluminium Tape
- Reinforcement Rod
- Reinforcement Screw
- Reinforcemen Disc
- Tiger Connector
- Foam Tape 25mm X 3mm
