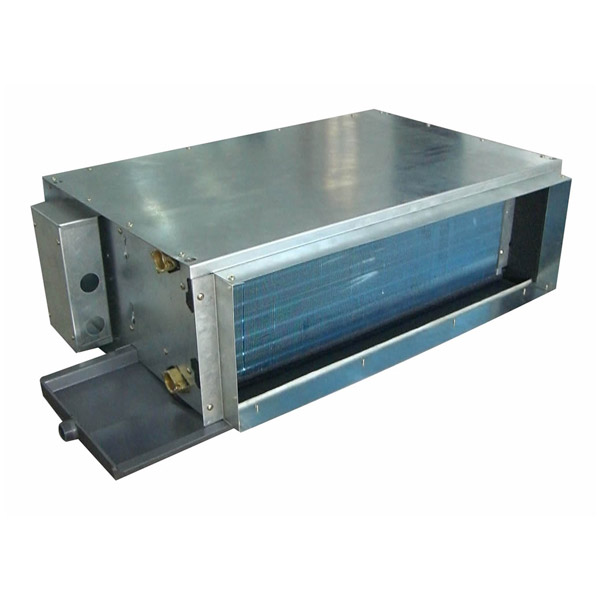

Ducted Units
- Capacity range: 200 CFM to 3000 CFM
- Low Static units for Low static pressure application
- High Static units with ESP up to 100Pa
- All units are supplied with 12.5 mm or 25 mm Aluminum filter
- Eurovent Certified
- Standard Cooling & District Cooling
- AC & EC / DC Motor
- Low noise
- 3-speed units
- Repute brand motor having UL recognized components for both AC & EC
- Fire rated insulation
- 0.8mm - 1mm thick skin
- Galvanized Steel drain pan with Externally Insulated and internally powder coated.
- Cooling coil with Cu coil and Al fins

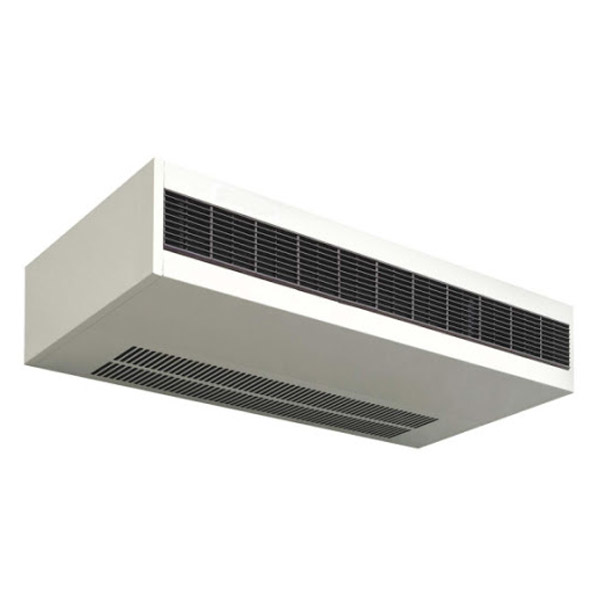

Decorative Units
- Wall Mounted / Ceiling Exposed / Floor Mounted Type
- Capacity range: 200 CFM to 3000 CFM
- All units are supplied with 12.5 mm or 25 mm Aluminum filter
- Eurovent Certified
- Standard Cooling & District Cooling
- AC & EC / DC Motor
- Fire rated insulation
- 0.8mm - 1mm thick skin
- External skin powder coated with RAL 9001
- Galvanized Steel drain pan with Externally Insulated and internally powder coated.
- Cooling coil with Cu coil and Al fins
- Grill

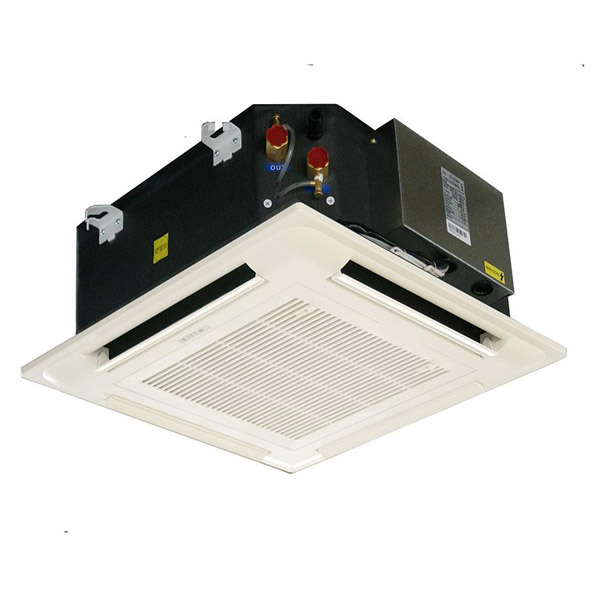

Cassette Units
- Units are available in sizes covering the nominal airflow range of 300 -1700 cfm
- The Fan coil units are attractively styled to blend with most room decors.
- Provide reliable cooling performance at high efficiencies and low sound levels
- Installed horizontally on the ceiling
- Very little space in the room
- Ideally suited to fulfil almost all space constraints
- Motors shall be 3 speed PSC type
- The casing shall be constructed of galvanized steel with electrostatic coating.
- Filter shall be Synthetic removable and washable type
- The unit shall be provided with discharge grills (4 wind direction) and wind direction can be adjusted

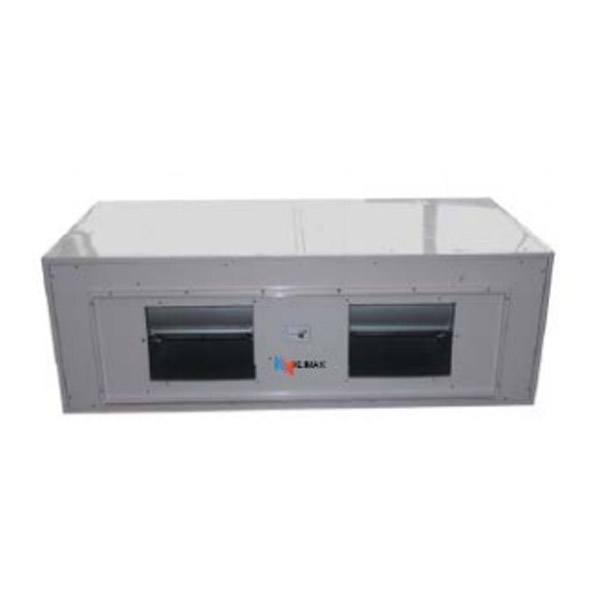

Double Skin Units
- 25mm thick Casing
- 0.5mm thick Internal / External Skin
- Polyurethane Insulation
- 25mm thick washable Aluminium filter
