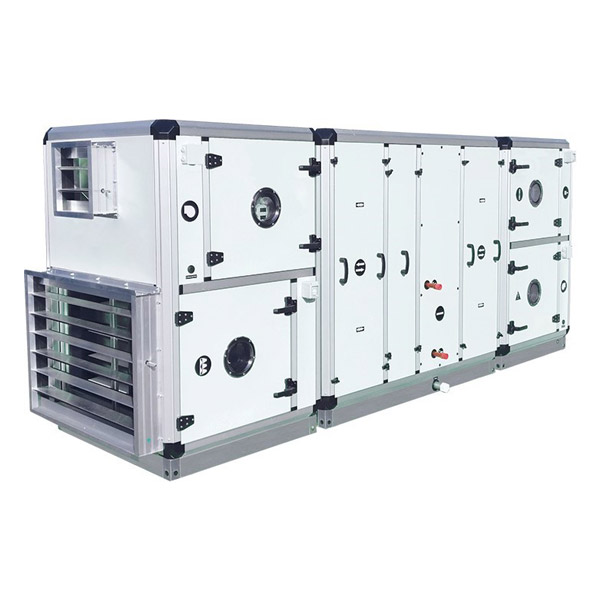

Energy Recovery Units

Units can be configured based on the Type of Heat Recovery:

• FAHU / ERU with Enthalpy Recovery Wheel and Sensible Heat Wheel
• FAHU / ERU with Enthalpy Recovery Wheel and Horse Shoe Heat Pipe.
• FAHU / ERU Plate Heat Exchanger

Cooling Coil Can be Selected for different applications:

• Chilled Water Application
• DX Application

Units can be provided with a whole range of Components in many different Configurations:

• Pre Filter
• Bag Filter
• Enthalpy Recovery Wheel
• Plate Heat Exchanger
• Chilled Water Cooling Coil
• DX Cooling Coil
• Droplet Eliminator
• Sensible Heat Wheel
• Horse Shoe Heat Pipe
• Humidifier
• Electric Heater
• UV Lamp
• Odour Neutraliser
• Axial / Centrifugal / Plug Fan
• Damper

Certifications:

• Eurovent Certified Units
• AHRI Certified Coils
• AMCA Certified Fans
• ISO 9001:2008 Certified Manufacturing Facility

Features:

• Air Handling Units manufactured in modular sections.
• Units are with thermal break system applied for both panels and frames.
• 50mm, 60mm thick Panel with Polyurethane or Fiberglass insulation.
• 0.8mm - 1.5mm thick Galvanized Steel or Stainless Steel sheet skin
• Different sectional arrangements and fan discharge positions are possible.
• Cooling Coil with Cu tubes and Al fins
• Drain pan available in GI, SS 304 & SS 316 Constructions
• Pastic Coated External Skin
• Corrosion resistant coatings for Coil
• Capacity range: 600 CFM to 80000 CFM
• Refrigerants R22, R410a, R407c, R134a, R404a
• Air Handling Units are applicable for indoor and outdoor installation
